2 Way, 2 Position Solenoid Valves

Fonray provides a number of solenoid valves including 2 way solenoid valves and 2 position solenoid valves. We divided our valves into two types, piston direct drive type and membrane type. The valves sizes are from 1/8 inch to 4 inch, and they could sustain the operating pressure from 5 kg to 50 kg. Moreover, we also provide high pressure and high temperature solenoid valve.

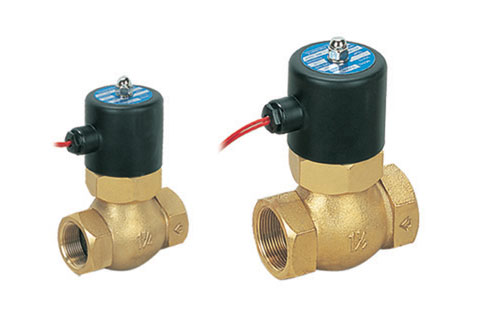

2 Way, 2 Position Solenoid Valves - Two-Port 2L Solenoid Valve2 Way, 2 Position Solenoid Valves - Two-Port 2L Solenoid Valve

2 Way, 2 Position Solenoid Valves - Two-Port 2L Solenoid Valve

* Please note that the full series of 2 way solenoid valves / pneumatic valves can only be installed in parallel ( the coil / cylinder face up ), not vertically.

Specifications

Model Working
Medium
Aperture of
Flow Rate
(mm)
Port Size
(G/PT)
Working -
pressure Range
(Mpa)
Operating
Temperature
2L170-15 Air, Water, Steam 17 1/2″ 0.1 ~ 1.5 -5~180 ℃
2L170-20 3/4″
2L200-25 22 1″
2L300-35 30 1¹/4″
2L300-40 1¹/2″
2L500-50 50 2″
