2 Way, 2 Position Solenoid Valves

Fonray provides a number of solenoid valves including 2 way solenoid valves and 2 position solenoid valves. We divided our valves into two types, piston direct drive type and membrane type. The valves sizes are from 1/8 inch to 4 inch, and they could sustain the operating pressure from 5 kg to 50 kg. Moreover, we also provide high pressure and high temperature solenoid valve.

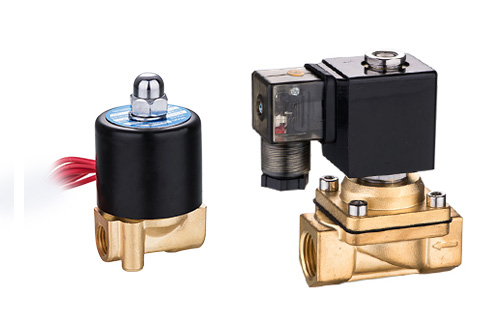

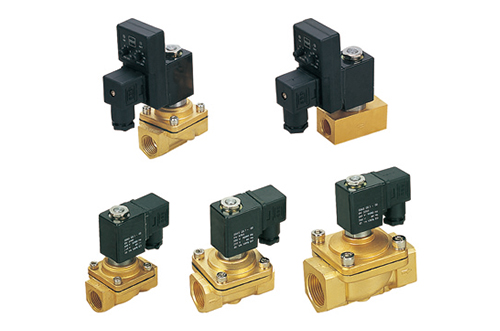

2 Way, 2 Position Solenoid Valves - Two-way 2W Solenoid Valve2 Way, 2 Position Solenoid Valves - Two-way 2W Solenoid Valve2 Way, 2 Position Solenoid Valves - Two-way 2W Solenoid Valve

2 Way, 2 Position Solenoid Valves - Two-way 2W Solenoid Valve

* Please note that the full series of 2 way solenoid valves / pneumatic valves can only be installed in parallel ( the coil / cylinder face up ), not vertically.

Specifications

Model Working
Medium
Aperture of
Flow Rate
(mm)
Port Size
((G/PT)
Working -
pressure Range
(Mpa)
Operating
Temperature
2W025-06 Air, Water, Oil 2.5 1/8″ Air: 0~0.7
Water: 0~0.5
Oil: 0~0.5
-5~80 ℃
2W025-08 1/4″
2W040-10 4 3/8″
2W160-15 16 1/2″
2W200-20 20 3/4″
2W250-25 25 1″
2W350-35 35 1¹ /4″
2W400-40 40 1¹ /2″
2W500-50 50 2″
2W160-15D 16 3/8″
2W200-20D 20 3/4″
2W250-25D 25 1″
