Solenoid Valves

We produce various types of pneumatic / air solenoid valves. One type of our high pressure solenoid valves has working maximal pressure resistance range from 11 kg to 40 kg, and the other type which has maximal acting times from 5 times up to 200 times. We also provide coils of low electric current, and all of our seal rings are made in Japan. If you'd like to inquire about our solenoid valves, please contact us directly.

Solenoid Valves - 3V 1 / 2V Solenoid ValveSolenoid Valves - 3V 1 / 2V Solenoid ValveSolenoid Valves - 3V 1 / 2V Solenoid Valve

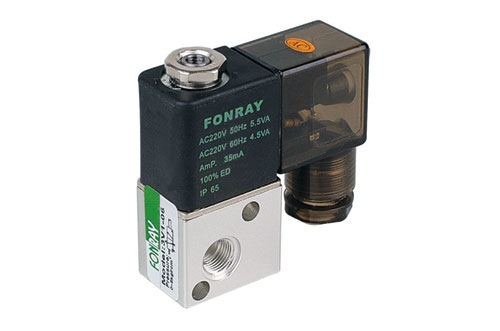

Solenoid Valves - 3V 1 / 2V Solenoid Valve

Specifications

Model Working Medium Aperture of
Flow Rate (mm)
Port Size
(G/PT)
Working - pressure
Range (Mpa)
Operating
Temperature
3V1-06 40 Micron Filtered Air 1 1/8" 0 ~ 0.8 -10 + 60 ℃
3V1-06A
3V1-06AT

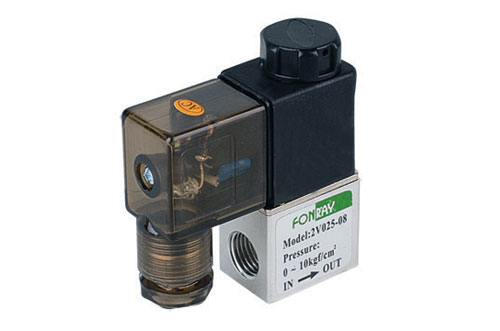

2V025-06 Air, Water, Oil 2.5 1/8" 0.05 ~ 0.7 -10 ~ 80 ℃
2V025-08 1/4"
