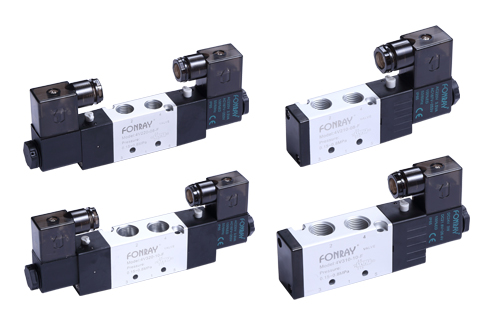

Solenoid Valves - 4V Solenoid Valve
Specifications
| Model | Motion | Position Number |
Port Size (G/PT) |
Working - pressure Range (Mpa) |
Highest Action Frequency |
Effective Sectional Area |
|---|---|---|---|---|---|---|
| 4V110-M5 | Inner Guide Type |
2 position 5 way |
M5 | 0.15~0.8 | 5 Cycle/Sec | 12mm² (CV=0.67) |
| 4V120-M5 | ||||||
| 4V130-M5(C.E.P) | 3 position 5 way |
9mm ²(CV=0.5) | ||||
| 4V110-06 | 2 position 5 way |
1/8" | 12mm²(CV=0.67) | |||
| 4V120-06 | ||||||
| 4V130-06(C.E.P) | 3 position 5 way |
9mm²(CV=0.5) |
| Model | Motion | Position Number |
Port Size (G/PT) |
Working - pressure Range (Mpa) |
Highest Action Frequency |
Effective Sectional Area |
|---|---|---|---|---|---|---|
| 4V210-06 | Inner Guide Type |
2 position 5 way |
1/8" | 0.15~0.8 | 5 Cycle/Sec | 16mm² (CV=0.89) |

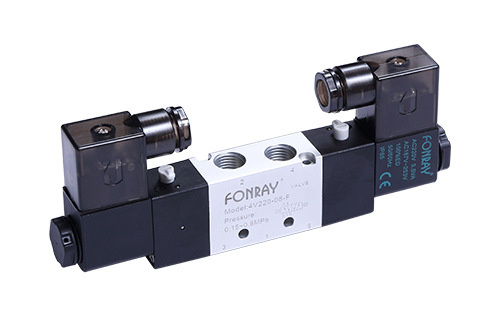

| 4V220-06 | ||||||
| 4V230-06(C.E.P) | 3 position 5 way |
12mm²(CV=0.67) | ||||

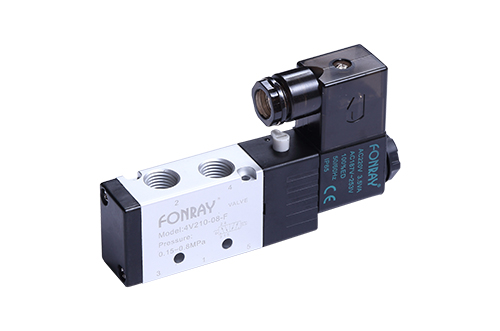

| 4V210-08 | 2 position 5 way |
1/4" | 16mm² (CV=0.89) | |||
| 4V220-08 | ||||||
| 4V230-08(C.E.P) | 3 position 5 way |
12mm²(CV=0.67) |
| Model | Motion | Position Number |
Port Size (G/PT) |
Working - pressure Range (Mpa) |
Highest Action Frequency |
Effective Sectional Area |
|---|---|---|---|---|---|---|
| 4V310-08 | Inner Guide Type |
2 position 5 way |
1/4" | 0.15~0.8 | 5 Cycle/Sec | 30 mm² (CV=1.68) |
| 4V320-08 | ||||||
| 4V330-08(C.E.P) | 3 position 5 way |
18mm²(CV=1.00) | ||||

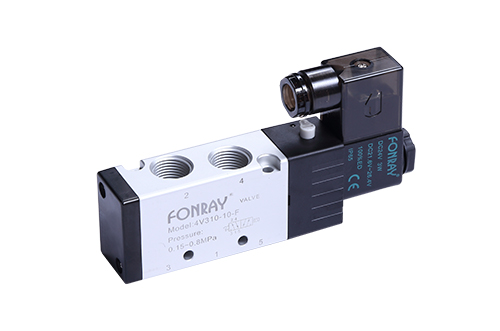

| 4V310-10 | 2 position 5 way |
3/8" | 30 mm² (CV=1.68) | |||

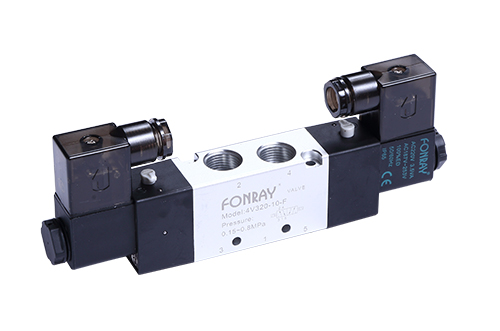

| 4V320-10 | ||||||
| 4V330-10(C.E.P) | 3 position 5 way |
18mm²(CV=1.00) |
| Model | Motion | Position Number |
Port Size (G/PT) |
Working - pressure Range (Mpa) |
Highest Action Frequency |
Effective Sectional Area |
|---|---|---|---|---|---|---|
| 4V410-15 | Inner Guide Type |
2 position 5 way |
1/2" | 0.15~0.8 |
5 Cycle/Sec |
50 mm² (CV=2.79) |
| 4V420-15 | ||||||
| 4V430-15(C.E.P) | 3 position 5 way |
30mm²(CV=1.68) |
