PISCO Manual Valve

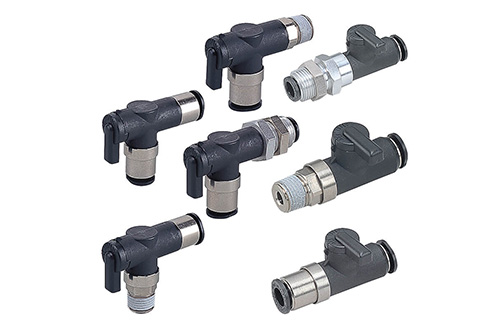

PISCO Manual Valve - BV Ball Valve PISCO Manual Valve - BV Ball Valve

PISCO Manual Valve - BV Ball Valve

Series: 10, 20, 60, Fluid medium: Air (10 series), Air, Water (20 & 60 series) (Conditional). Ball Valve turns on and off air pressure to pneumatic devices. Water can be admitted to 20 and 60 series.

Online Inquiry

Specifications

Series 10 20 60
Fluid medium Air Air, Water ( conditional )
Operating pressure range 0 ~ 0.7MPa 0 ~ 0.9MPa
Max. vacuum -100 kpa
Operating temp. range 0 ~ 60℃( No freezing )
Effective sectional area 10 mm2 ( Cv=0.45 ) 20 mm2 ( Cv=1.08 ) 60 mm2 ( Cv=3.25 )
