Pneumatic Fittings

Fonray's pneumatic / air tubing fittings and pneumatic / air pipe fittings are made of high quality materials in order to increase their firmness. Our products are through special designs that can adapt PU, PE and nylon tube. The specifications are below, the operating medium of fittings can be oil, water, vacuum and air; the material of seal-ring is NBR; the pressure of endurance test could up to 50 kg and the working pressure is 11 kg.

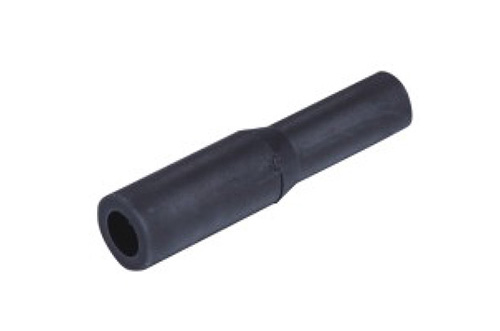

Pneumatic Fittings - EPIJ / EPIG Connector

Online Inquiry PDF

Specifications

Model	Fluid Applied	Working - pressure Range	Operating Temperature	Max. Pressure	Adapted Tube	Material of Seal Ring
EPIJ4*	Air, vacuum, water, oil (use in no erodent environment)	0~11kgf/cm² (0~1.1mpa)	-10~60°C	1.1mpa	PU tube Nylon tube	NBR
EPIJ6*
EPIJ8*
EPIJ10*
EPIJ12*
EPIJ14*
EPIJ16*
EPIG6-4	Air, vacuum, water, oil (use in no erodent environment)	0~11kgf/cm² (0~1.1mpa)	-10~60°C	1.1mpa	PU tube Nylon tube	NBR
EPIG8-4
EPIG8-6
EPIG10-6
EPIG10-8
EPIG12-8
EPIG12-10
EPIG14-10*
EPIG14-12*
EPIG16-12
EPIG16-14*

The ones with * have no mold and are machined with PBT plastic rods.
