Pneumatic Fittings

Fonray's pneumatic / air tubing fittings and pneumatic / air pipe fittings are made of high quality materials in order to increase their firmness. Our products are through special designs that can adapt PU, PE and nylon tube. The specifications are below, the operating medium of fittings can be oil, water, vacuum and air; the material of seal-ring is NBR; the pressure of endurance test could up to 50 kg and the working pressure is 11 kg.

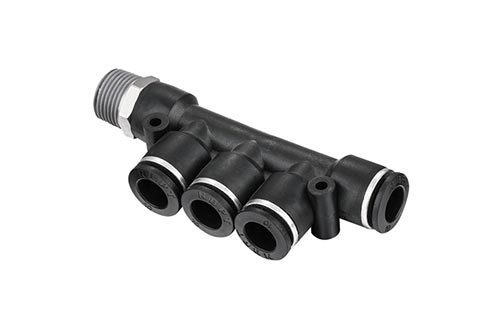

Pneumatic Fittings - EPKB BranchPneumatic Fittings - EPKB Branch

Pneumatic Fittings - EPKB Branch

Specifications

Model Fluid Applied Working -
pressure Range
Operating
Temperature
Max.
Pressure
Adapted
Tube
Material of
Seal Ring
EPKB 4-01 Air, vacuum,
water, oil
(use in no erodent
environment)
0~11 kgf/cm²
( 0 ~ 1.1 mpa )
-10 ~ 60°C 1.1 mpa PU tube
Nylon tube
NBR
EPKB 4-02
EPKB 6-01 Air, vacuum,
water, oil
(use in no erodent
environment)
0~11 kgf/cm²
( 0 ~ 1.1 mpa )
-10 ~ 60°C 1.1 mpa PU tube
Nylon tube
NBR
EPKB 6-02
EPKB 6-03
EPKB 8-01 Air, vacuum,
water, oil
(use in no erodent
environment)
0~11 kgf/cm²
( 0 ~ 1.1 mpa )
-10 ~ 60°C 1.1 mpa PU tube
Nylon tube
NBR
EPKB 8-02
EPKB 12-10 Air, vacuum,
water, oil
(use in no erodent
environment)
0~11 kgf/cm²
( 0 ~ 1.1 mpa )
-10 ~ 60°C 1.1 mpa PU tube
Nylon tube
NBR
EPKB 12-12
