2 Way, 2 Position Solenoid Valves

Fonray provides a number of solenoid valves including 2 way solenoid valves and 2 position solenoid valves. We divided our valves into two types, piston direct drive type and membrane type. The valves sizes are from 1/8 inch to 4 inch, and they could sustain the operating pressure from 5 kg to 50 kg. Moreover, we also provide high pressure and high temperature solenoid valve.

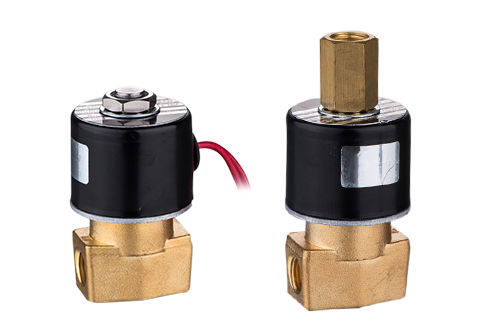

2 Way, 2 Position Solenoid Valves - Two-way FLG Solenoid Valve2 Way, 2 Position Solenoid Valves - Two-way FLG Solenoid Valve

2 Way, 2 Position Solenoid Valves - Two-way FLG Solenoid Valve

* Please note that the full series of 2 way solenoid valves / pneumatic valves can only be installed in parallel ( the coil / cylinder face up ), not vertically.

Specifications

Model Working
Medium
Aperture of
Flow Rate
(mm)
Port Size
(G/PT)
Working -
pressure Range
(Kgf/cm²)
Material Of
Oil Seal
FG22-06 Air, Water, Oil 1.6 1/8″ 0~15 NBR or VITON
2.4 0~10
FG22-08 3.2 1/4″ 0~7
4.0 0~5
FG23-06 1.6 1/8″ 0~9
FG23-08 1/4″
