Solenoid Valves

We produce various types of pneumatic / air solenoid valves. One type of our high pressure solenoid valves has working maximal pressure resistance range from 11 kg to 40 kg, and the other type which has maximal acting times from 5 times up to 200 times. We also provide coils of low electric current, and all of our seal rings are made in Japan. If you'd like to inquire about our solenoid valves, please contact us directly.

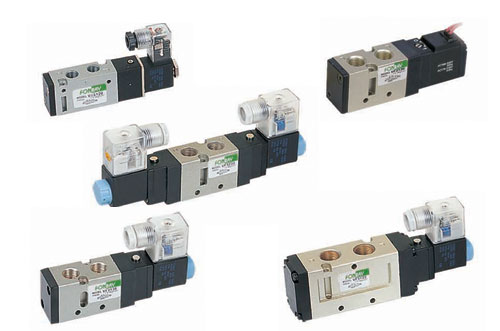

Solenoid Valves - FMC / FMZ Solenoid ValveSolenoid Valves - FMC / FMZ Solenoid Valve

Solenoid Valves - FMC / FMZ Solenoid Valve

3D_Host Online Inquiry PDF

Specifications

Model Motion Position Number Working -
pressure
Range 		Operating
Temperature
FMC3130 Inner Guide Type 2 position
5 way		 0.15 ～ 0.8 5~50 ℃
FMC3230
FMC33(4/5)30 3 position
5 way
FMC5120 2 position
5 way
FMC5220
FMC53(4/5)50 3 position
5 way
FMZ5120 2 position
5 way
FMZ5220
FMZ53(3/4)50 3 position
5 way

Model Highest Action
Frequency 		Working
Medium		 Max. Pressure
Resistance		 Effective
Sectional Area
FMC3130 5 Cycle/Sec 40 Micron
Filtered Air		 1.2MPa 16mm²(CV=0.89)
FMC3230
FMC33(4/5)30 12mm²(CV=0.67)
FMC5120 25mm²(CV=1.40)
FMC5220
FMC53(4/5)50 18mm²(CV=1.00)
FMZ5120 12mm²(CV=0.67)
FMZ5220
FMZ53(3/4)50 9mm²(CV=0.50)
