FONRAY Enterprise Co.,Ltd.

2 Way, 2 Position Solenoid Valves

Fonray provides a number of solenoid valves including 2 way solenoid valves and 2 position solenoid valves. We divided our valves into two types, piston direct drive type and membrane type. The valves sizes are from 1/8 inch to 4 inch, and they could sustain the operating pressure from 5 kg to 50 kg. Moreover, we also provide high pressure and high temperature solenoid valve.

FSL Pneumatic Ball Valve FSL Pneumatic Ball Valve FSL Pneumatic Ball Valve

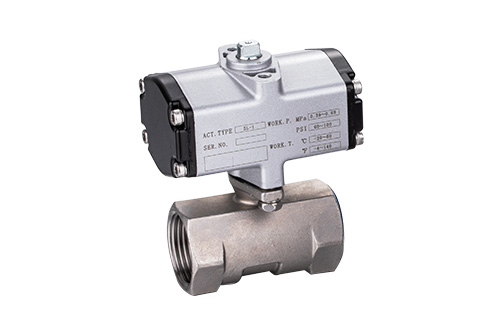

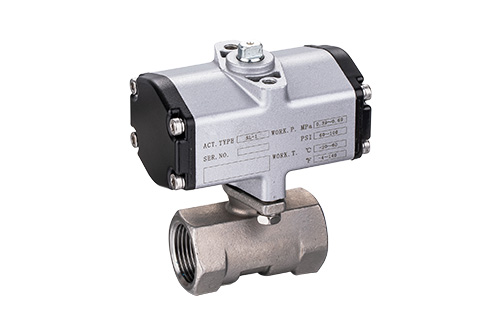

2 Way, 2 Position Solenoid Valves - FSL Pneumatic Ball Valve

Features : Stainless steel body, light in size and easy to install, more economical and affordable than traditional pneumatic ball valves.
Industry :
1. A solution specially developed for cutting and disinfecting fluid in the machine tool industry, which is resistant to dirt and improves service life
2. Small volume and convenient installation for piping engineering

Online Inquiry PDF

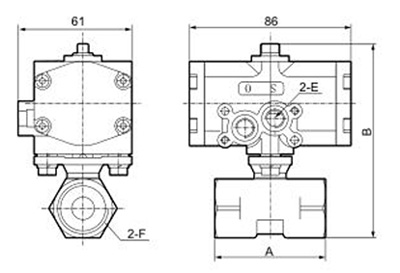

Specifications

Model Port Siz / F A B E ( PT )
FSL-15 1/2" 57 97 1/8
FSL-20 3/4" 60 105 1/8
FSL-25 1" 71 111 1/8

FSL Pneumatic Ball Valve
