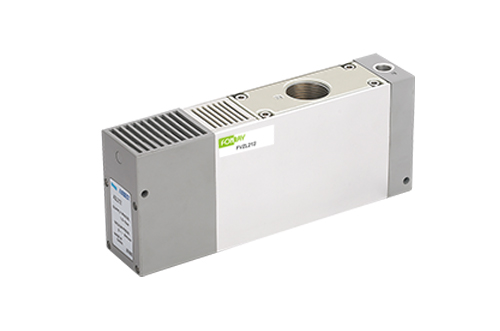

FVZL212 Multistage Vacuum Pump
Features
Adopt 2 fluctuation overlap 3 levels rise pressure pipe, the flow rate saving and vacuum flow rate is 2 times of FVZL112
Can be with vacuum pressure switch
Built-in silencer
Can be installed at 2 directions ( bottom, side )
Vacuum flow( l/min ) at different vacuum levels ( -kPa )
| Air supply pressure bar |
Air consumption w cominion l/min |
Vacuum flow( l/min ) at different vacuum levels ( -kPa ) | Max vacuum level -kPa |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | |||
| 4 | 125 | 200 | 150 | 52 | 40 | 30 | 25 | 15 | 8 | 3 | 84 |
Evacuation time ( s/l ) to reach different vacuum levels ( -kPa )
| Air supply pressure bar |
Air consumption w cominion l/min |
Evacuation time ( s/l ) to reach different vacuum levels ( -kPa ) | Max vacuum level -kPa |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | |||
| 4 | 125 | 0.011 | 0.076 | 0.246 | 0.415 | 0.646 | 0.98 | 1.52 | 2.64 | 84 |
