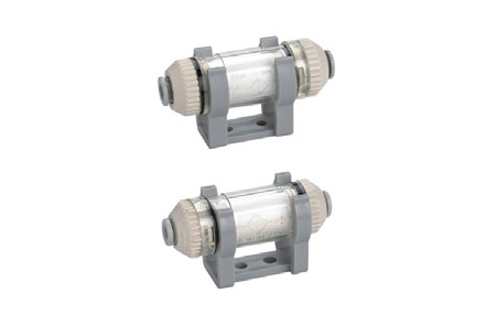

FZFC Vacuum Fliter
Features
Filter element is replaceable
Compact and low weight design
One-touch quick fitting and convenient assembly
Adopt easy assembled and disassemble structure filter element can be replaced without tools
Straight through type.inlet and outlet are in the samé line, it is easy to assemble
Standard type is with bracket
Specification
| Model | FZFC100-04B | FZFC100-06B | FZFC100-06B | FZFC200-06B |
|---|---|---|---|---|
| Applicable tube O.D. ( mm ) | ¢ 4 | ¢ 6 | ¢ 6 | ¢ 8 |
| Flow l/min | 10 | 20 | 30 | 50 |
| Fluid | Air, Nitrogen | |||
| Operating pressure | -100 ~ 0kPa | |||
| Filtration degree | 10 µm | |||
| Environment and fluid temperature | 0 ~ 60 °C ( with no freezing ) | |||
| Element differential pressure resistance | 1.5 bar | |||
| Applicable libing material | Nylon, Soft nylon, Polyurethane, Soft polyurethane | |||
| Filter element ( spare parts ) | FC-100 | FC-200 | ||
