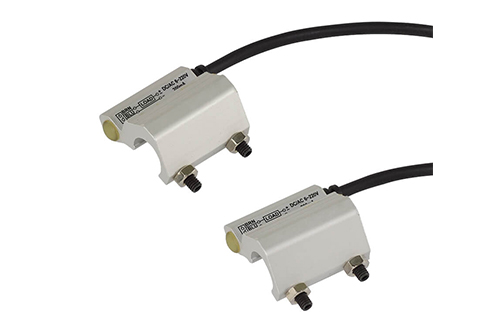

Sensor Switch - LN01P
Model: LN01P / LN02P / LN03P, Assembling style: MDM*, Voltage range: 10~220V DC/AC.
Specifications
| Wiring method | LN0*P : 2 wire, LN0*P-AN, LN0*P-AP : 3 wire |
|---|---|
| Switching logic | LN0*P : N.O., LN0*P-AN, LN0*P-AP : Without contact, N.O. |
| Switch type | LN0*P : Reed switch, LN0*P-AN : NPN current sinking, LN0*P-AP : PNP current sourcing |
| Operating voltage | LN0*P : 10~220V DC/AC LN0*P-AN, LN0*P-AP : 5~30V DC |
| Switching current | LN0*P : 100mA max. LN0*P-AN, LN0*P-AP : 200mA max. |
| Switching rating | LN0*P : 10W max. (※1) LN0*P-AN, LN0*P-AP : 6W max. |
| Current consumption | LN0*P-AN, LN0*P-AP : OFF : 7mA(24V)/ ON : 20mA(24V) max. |
| Voltage drop | LN0*P : 3V max. LN0*P-AN, LN0*P-AP : 0.5V@200mA max. |
| Indicat | LN0*P,LN0*P-AN : Red LED, LN0*P-AP : Green LED |
| Cable | LN0*P : φ3.3, 2C, PVC, LN0*P-AN, LN0*P-AP : φ3.3, 3C, PVC |
| Temperature range | －10℃~＋70℃ ( No freezing ) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | LN0*P : 1 ; LN0*P-AN, LN0*P-AP : 3,4 (※2) |
| Remark | ※1 : Warning: Never exceed rating ( watt = voltage × amperage ). Permanent damage to sensor will occur. ※2 : 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
