Sensor Switch

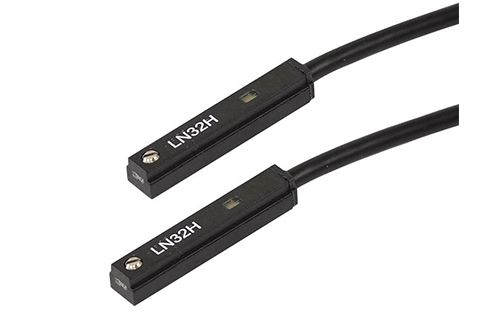

Sensor Switch - LN32H Sensor Switch - LN32H

Sensor Switch - LN32H

Assembling style: MHCB-M, Voltage range: 5~240V DC/AC.

Specifications

Wiring method LN32H : 2 wire
LN32H-N, LN32H-P : 3 wire
Switching logic LN32H : N.O.
LN32H-N, LN32H-P : Without contact,N.O.
Switch type LN32H : Reed switch
LN32H-N : NPN current sinking
LN32H-P : PNP current sourcing
Operating voltage LN32H : 5~240V DC/AC
LN32H-N, LN32H-P : 10~30V DC
Switching current LN32H : 100mA max.
LN32H-N, LN32H-P : 200mA max.
Switching rating LN32H : 10W max. (※1)
LN32H-N, LN32H-P : 3W max.
Current consumption LN32H-N, LN32H-P :
OFF : 7mA(24V)/ ON : 17mA(24V) max.
Voltage drop LN32H : 3.5V max.
LN32H-N, LN32-P : 2.0V max.
Indicat LN32H, LN32H-N : Red LED
LN32H-P : Yellow LED
Cable LN32H : φ3.3,2C,PVC
LN3H2-N, LN32H-P : φ3.3,3C,PVC
Temperature range -10℃~+70℃ ( No freezing )
Enclosure classification IEC 60529 IP67
Protection circuit LN32H : 1 (※2)
LN32H-N, LN32-P : 3, 4
Remark ※1 : Warning: Never exceed rating ( watt = voltage × amperage ). Permanent damage to sensor will occur.
※2 : 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression.
