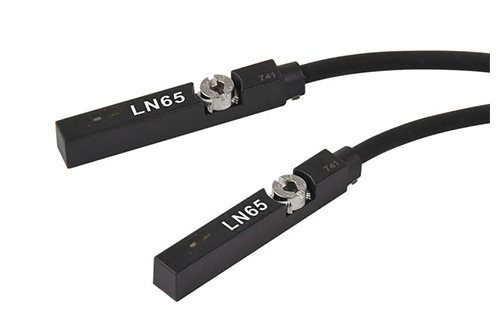

Sensor Switch - LN65 Sensor Switch - LN65

Sensor Switch - LN65

Assembling style: MRTH(F), Voltage range: 5~240V DC/AC.

Specifications

Wiring method 2 wire (LN65), 3 wire (LN65N/P)
Switching logic Normal open (LN65), Solid state output, normally open (LN65N/P)
Switch Type Reed switch (LN65),
NPN Current sinking (LN65N), PNP Current sinking (LN65P)
Operating voltage 5~240V DC/AC (LN65), 5~30V DC (LN65N/P)
Switching rating 10W max. (LN65), 6W max. (LN65N/P)  (※1)
Switching current 100mA max. (LN65), 200mA max. (LN65N/P)
Voltage drop 3V max. (LN65), 0.5V@200mA max. (LN65N/P)
Current consumption OFF:7mA (24V), ON:20mA (24V) max. (LN65N/P)
Operating frequency < 2ms (LN65), <1ms ln65n="" p="" --1ms--="">
Indicator Red LED (LN65), Yellow LED (LN65N/P)
Cable φ2.8,2C,PUR (LN65), φ2.8,3C,PUR (LN65N/P)
Temperature range -10℃~+70℃ (No freezing)
Enclosure classification IP 67
Protection circuit  1 (LN65), 3,4 (LN65N/P)  (※2)
Remark ※1 : Warning: Never exceed rating ( watt = voltage × amperage ). Permanent damage to sensor will occur.
※2 : 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression.
