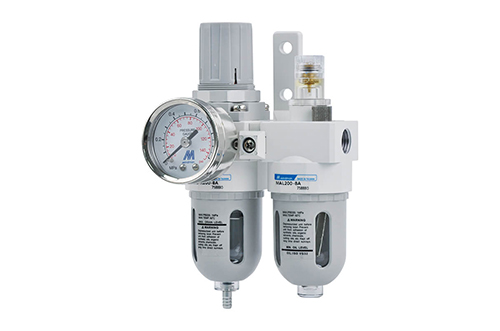

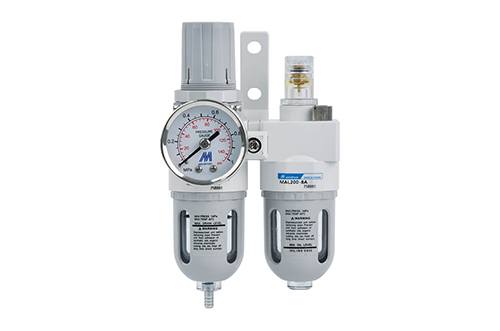

FRL Unit - MACP200
Components : MAFR200, MAL200，Port size : 1/8, 1/4, Operating pressure range : 0.05 ~ 1 MPa，Proof pressure : 1.5 MPa
Specifications
| Components | MAFR200, MAL200 |
|---|---|
| Bore No. | 6A, 8A |
| Port size | 1/8, 1/4 |
| Medium | Air |
| Operating pressure range (※) | 0.05 ~ 1 MPa |
| Regulated pressure range | 0.05 ~ 0.85 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5℃ ~ ＋60℃ ( No freezing ) |
| Filter element | Standard：40 μm Option：5 μm |
| Lubricating oil capacity | 20 c.c. |
| Min. flow for oil drip | 35 l/min,50 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure gauge ( PG-40 ), bracket |
| Weight | 432g |
| Remark | ※ Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. |
