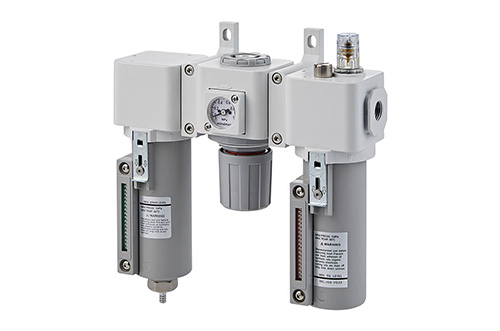

FRL Unit - MACT302
Components : MAF302, MAR302, MAL302，Port size : 1/4, 3/8, 1/2,, Operating pressure range : 0.05 ~ 1 MPa，Proof pressure : 1.5 MPa
Specifications
| Components | MAF302, MAR302, MAL302 |
|---|---|
| Bore No. | 8A, 10A, 15A |
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range (※) | 0.05 ~ 1 MPa |
| Effective orifice | 8A: 32 mm2 、 10A, 15A: 34 mm2 |
| Regulated pressure range | 0.05 ~ 0.85 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~ ＋60℃ ( No freezing ) |
| Filter element | Standard：5μm Option：40μm |
| Lubricating oil capacity | 65 c.c |
| Min. flow for oil drip | 8A : 50 l/min 、 10A,15A : 60 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure Gauge ( PG-20 ), T-type bracket |
| Weight | 1115 g |
| Remark | ※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa. |
