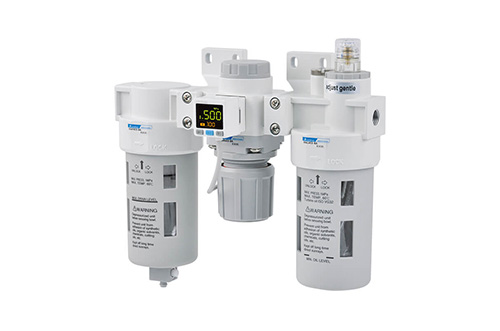

FRL Unit - MACT403
Components : MAF403, MAR403, MAL403，Port size : 1/4, 3/8, 1/2, Operating pressure range : 0.05 ~ 1 MPa，Proof pressure : 1.5 MPa
Specifications
| Components | MAF403, MAR403, MAL403 |
|---|---|
| Bore No. | 8A, 10A, 15A |
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range (※) | 0.05 ~ 1 MPa |
| Regulated pressure range | 0.1 ~ 0.85 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~ ＋60℃ ( No freezing ) |
| Filter element | Standard：40μm Option：5μm |
| Lubricating oil capacity | 200c.c |
| Min. flow for oil drip | 8A : 30 l/min, 10A: 65 l/min, 15A : 80 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Attachment | Pressure Gauge ( PG-20 ), L-type bracket |
| Weight | 1345 g |
| Remark | ※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa. |
