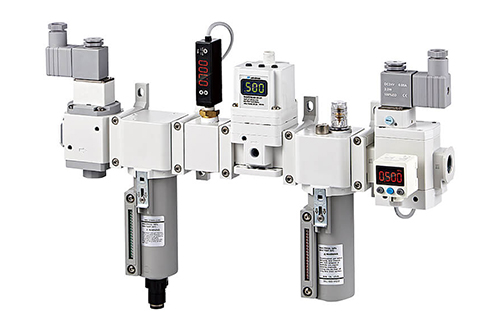

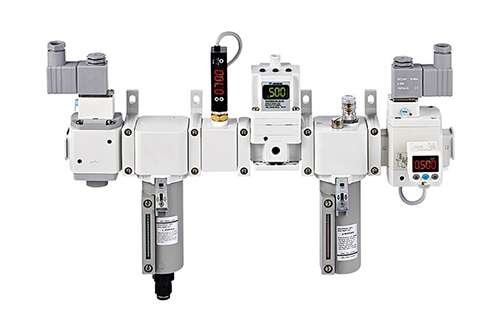

Electro Pneumatic Regulator - MAER200
Port size: 1/4, 3/8, Medium: Air, Max. supply pressure: 0.2 ~ 1 MPa, Enclosure: Equivalent to IP65.
Features
Stepless control of air pressure proportional to an electrical signal.
Simplify complex pipeline for controlling different pressure.
MAER200 can be assembled with MA**302 series.
Achieve high precision pressure control with microcomputer PID.
Maximum flow rate 1500 L/min ( Set pressure 1.0 MPa, Supply pressure 0.6 MPa ).
Specifications
| Pressure range | 1K, 5K, 9K |
|---|---|
| Bore No. | 8A, 10A |
| Port size | 1/4, 3/8 |
| Medium | Air |
| Proof pressure |
1K : 0.3 MPa 5K, 9K : 1.5 MPa |
| Ambient temperature | +5 ~ +50°C ( No condensation ) |
| Min. supply pressure | Setting pressure +0.1 MPa |
| Max. supply pressure | 1 MPa |
| Setting pressure range | 0.005 ~ 0.9 MPa |
| Power consumption | Voltage : DC24V±10% Current : DC24V: 0.1A or less |
| Signal input | Current type : DC4~20 mA Voltage type : DC0~5V, DC0~10V Preset input : 4 points |
| Input impedance | Current type : ≤ 430Ω Voltage type : Approx. ≤ 3kΩ Preset type : Approx. ≤ 100kΩ |
| Signal output ( Monitor output ) |
Analog output : Current type DC4 ~ 20mA ( Load impedance 600Ω or less ) Analog output : Voltage type DC1 ~ 5V ( Load impedance 500Ω or above ) Switch output : NPN, PNP: Max. 24V, 160mA |
| Linearity | 1K: Within ±2% ( F.S. ) 5K, 9K: Within ±1% ( F.S. ) |
| Hysteresis | Within 1% ( F.S. ) |
| Repeatability | Within ±1% ( F.S. ) |
| Sensitivity | Within 0.4% ( F.S. ) |
| Temperature characteristics | Within ±0.2% ( F.S. ) / °C |
| Output pressure display | Precision : ±2% F.S. ±1 digit Min. unit : MPa : 0.001, kgf/cm2 : 0.01, bar : 0.01, psi : 0.1, kPa : 1 |
| Enclosure | Equivalent to IP65 |
| Weight | Main : 360 g; Bracket : Approx. 86g ( B1 ) , 80g ( B2 ); Cable connector : Approx. 55g ( 1m ) , 130g ( 3m ) |
