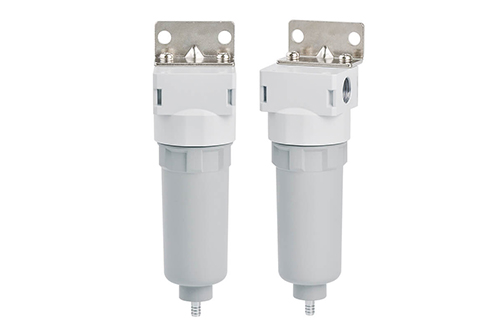

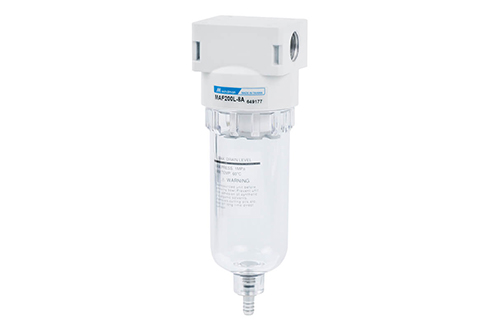

Filter - MAF200L
Port size : 1/8, 1/4, Operating pressure range : 0.05 ~ 1 MPa, Proof pressure : 1.5 MPa
Specifications
| Bore No. | 6A, 8A |
|---|---|
| Port size | 1/8, 1/4 |
| Medium | Air |
| Operating pressure range (※) | 0.05 ~ 1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~ ＋60℃ ( No freezing ) |
| Filter element | Standard：40μm Option：5μm |
| Drain capacity | 25 cm3 |
| Weight | 155g |
| Remark | ※ Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. |
