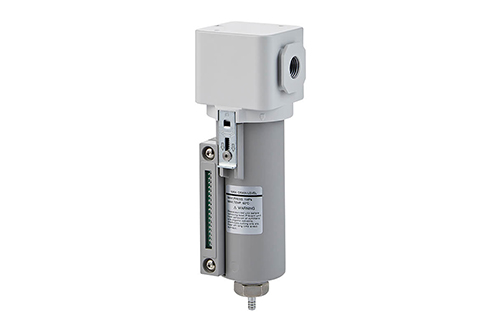

Air / Mist / Micro Mist Filter - MAF302D / M
Port size : 1/4, 3/8, 1/2, Operating pressure range : 0.05 ~ 1 MPa, Proof pressure : 1.5 MPa
Features
MAF302D is designed for removal of foreign matter as well as oil mist ( Element : 0.3μm )
MAF302M is designed for removal of foreign matter as well as oil mist ( Element : 0.01μm )
Specifications
| Bore No. | 8A, 10A, 15A |
|---|---|
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range(※) | 0.05 ~ 1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ ( No freezing ) |
| Filter element | 0.3μm, 0.01μm |
| Drain capacity | 35 cm3 |
| Weight | 365 g |
| Remark | ※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa. |
