Filter

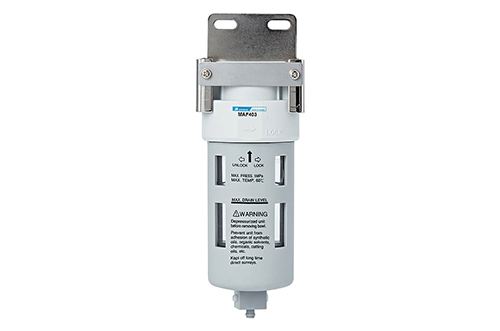

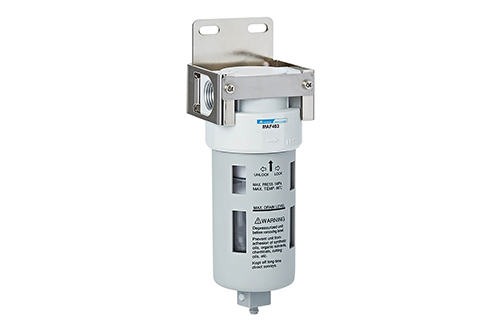

Filter - MAF403 Filter - MAF403 Filter - MAF403

Filter - MAF403

Port size : 1/4, 3/8, 1/2, Operating pressure range : 0.05 ~ 1 MPa, Proof pressure : 1.5 MPa

Specifications

Bore No. 8A, 10A, 15A
Port size 1/4, 3/8, 1/2
Medium Air
Operating pressure range (※) 0.05 ~ 1 MPa
Proof pressure 1.5 MPa
Ambient temperature -5 ~ +60℃ ( No freezing )
Filter element Standard:40μm Option:5μm
Drain capacity 75 cm3
Weight 345 g
Remark ※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa.
※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa.
