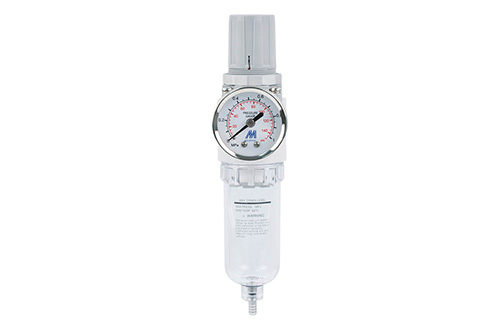

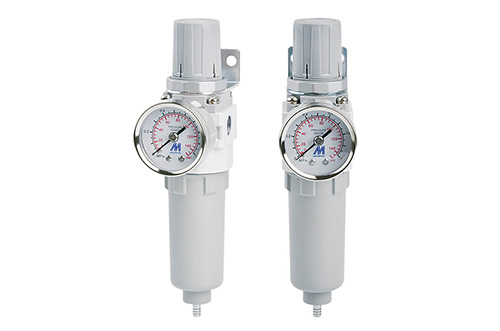

FR Unit - MAFR200L
Port size : 1/8, 1/4, Operating pressure range :By order specifications , Proof pressure : 1.5 MPa.
Specifications
| Bore No. | 6A, 8A |
|---|---|
| Port size | 1/8, 1/4 |
| Medium | Air |
| Operating pressure range (※) | 0.05 ~ 1 MPa |
| Regulated pressure range | 0.05 ~ 0.85 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~ ＋60℃ ( No freezing ) |
| Filter element | Standard：40μm Option：5μm |
| Drain capacity | 25 cm3 |
| Attachment | Pressure Gauge ( PG-40 )，Bracket |
| Weight | 226g |
| Remark | ※ Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. |
