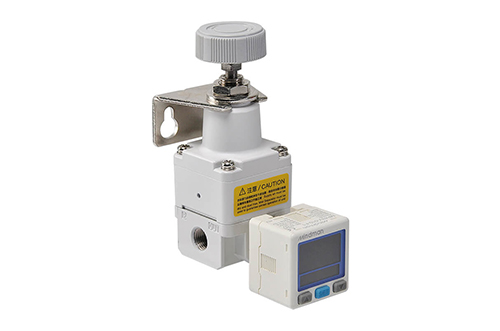

Precision Regulator - MAIR100
Port size: 1/8, Operating pressure range: 1 MPa, Proof pressure: 1.5 MPa.
Specifications
| Bore No. | 6A |
|---|---|
| Port size | 1/8 |
| Medium | Air |
| Operating pressure range | 1 MPa |
| Regulated pressure range | 2K : 0.005 ~ 0.2 MPa, 4K : 0.01~0.4 MPa, 8K: 0.01 ~ 0.8 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~ ＋60℃ ( No freezing ) |
| Sensitivity | Within ( E ) 0.2% of full span |
| Option | Pressure Gauge ( PG-33S ) |
| Repeatability | Within ( E ) ±0.5% of full span |
| Air consumption (※) | 4.4 l/min ( ANR ) of full span |
| Weight | 150 g |
| Remark | ※1. For supply pressure 1 MPa. |
