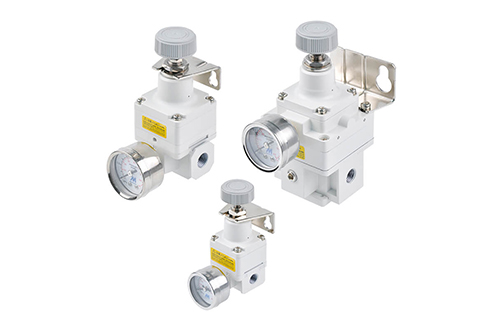

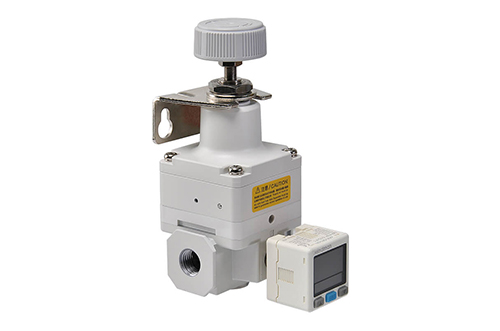

Precision Regulator - MAIR200
Port size: 1/4, Operating pressure range: 1 MPa, Proof pressure: 1.5 MPa
Specifications
| Bore No. | 8A |
|---|---|
| Port size | 1/4 |
| Medium | Air |
| Operating pressure range | 1 MPa |
| Regulated pressure range | 2K : 0.005 ~ 0.2 MPa, 4K : 0.01 ~ 0.4 MPa, 8K : 0.01 ~ 0.8 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~ ＋60℃ ( No freezing ) |
| Sensitivity | Within 0.2% of full span |
| Accessories | Bracket |
| Option | Pressure Gauge ( PG-40S ) |
| Repeatability | Within ±0.5% of full span |
| Air consumption (※) | 4.4 l/min ( ANR ) of full span |
| Weight | 300 g |
| Remark | ※1. For supply pressure 1 MPa. |
