Pressure Regulator

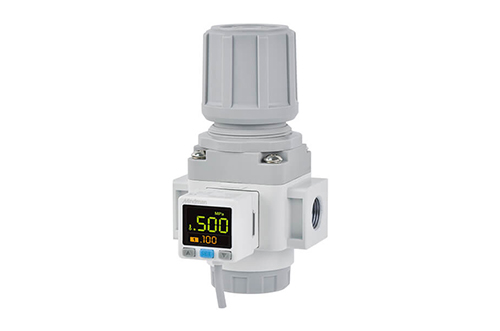

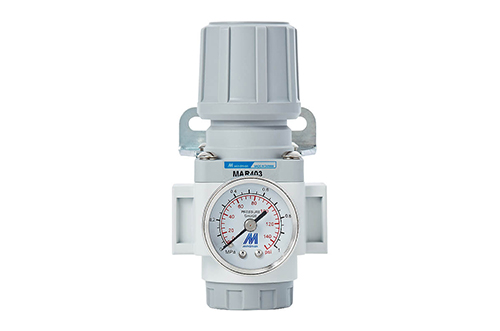

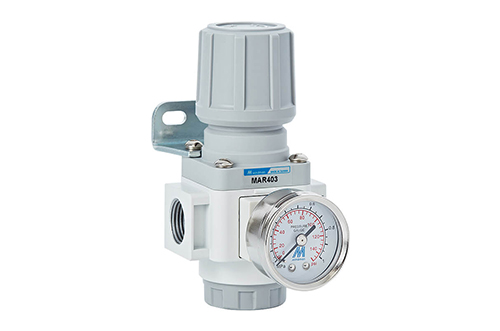

Pressure Regulator - MAR403

Port size : 1/4, 3/8, 1/2，Max. operating pressure: 1 MPa, Proof pressure : 1.5 MPa

Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Max. Operating pressure	1 MPa
Regulated pressure range	0.1 ~ 0.85 MPa
Proof pressure	1.5 MPa
Ambient temperature	－5 ~ ＋60℃ ( No freezing )
Attachment	Pressure Gauge ( PG-20 ), L-type bracket
Weight	450 g
