Pressure Regulator

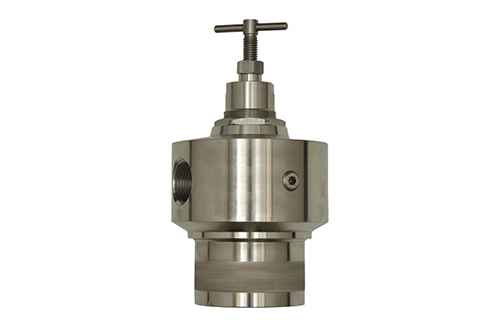

Pressure Regulator - MAR910 #316 Stainless Steel Pressure Regulator - MAR910 #316 Stainless Steel

Pressure Regulator - MAR910 #316 Stainless Steel

Mounting : #316 Stainless Steel, Port size : 1, 1 1/2, 2,Max. operating pressure : 3 MPa ,Weight : 6000 g

Features

The body, adjustment mechanism, screws & nuts, bottom cover and internal component mounting are all AISI 316L.
Applications include the marine environment, oil and gas production, chemical and food processing, medical analysis and more.

Specifications

Bore No. 25A, 40A, 50A
Port size 1, 1 1/2, 2
Medium Air
Max. Operating pressure 3 MPa
Regulated pressure range Standard 0.1 ~ 1 MPa
Option 0.17 ~ 1.75 MPa
Ambient temperature -20 ~ +80℃ ( No freezing )
Flow 13560 L/min, 14160 L/min, 14880 L/min
Option Pressure Gauge ( PG-50S2 )、Bracket ( B1-MAR311 )
Weight 6000 g
Remark ※1. Flow is at 1 MPa supply pressure and 0.1 MPa purssure drop of 0.6 MPa of secondary pressure.
※2. Please contact us for other specifications.
