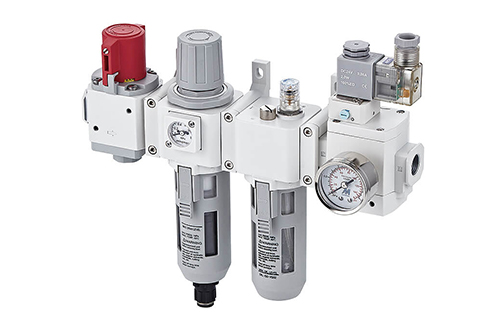

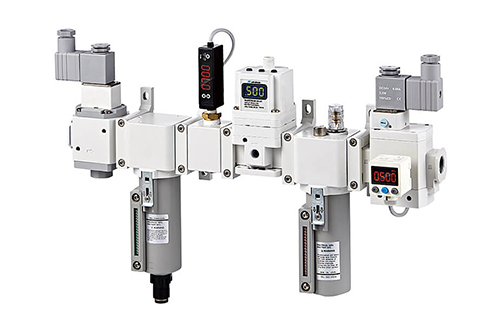

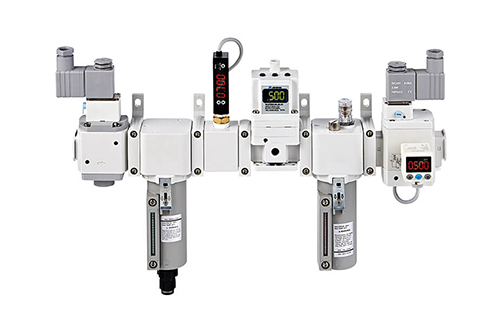

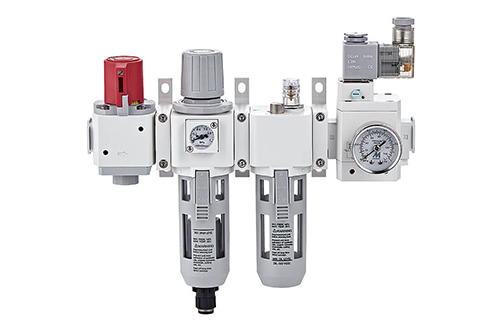

Soft Start-up Valve - MAVS
Start-up valve for low speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply. Combination with modular type air units ( F.R.L. unit ). Port size: 1/4, 3/8, 1/2.
Features
Start-up valve for low speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply.
Combination with modular type air units ( F.R.L. unit ) .
Specifications
Bore No. | MAVS200 : 1/4 (8A), MAVS300 : 3/8 (10A) , MAVS400 : 1/2 (15A) |
---|---|
Port size | 1/4, 3/8 , 1/2 |
Medium | Air |
Operating pressure range | 0.25 ~ 1 MPa |
Effective orifice | 8A : 1 ( P )→2 ( A ) : 20mm2 , 2 ( A )→3 ( R ) : 24mm2 10A : 1 ( P )→2 ( A ) : 37mm2 , 2 ( A )→3 ( R ) : 49mm2 15A : 1 ( P )→2 ( A ) : 61mm2 , 2 ( A )→3 ( R ) : 76mm2 |
Ambient temperature | 0 ~ +60℃ |
Voltage | AC110V, 220V ( 50 / 60 ) Hz, DC24V |
Power consumption | AC = 6/4.9VA DC = 2W |
Available voltage range | ±10% |
Insulation class | F class |
Option | Pressure Gauge ( PG-40 ), L type bracket |
Weight | 450 g, 520 g , 800 g |
