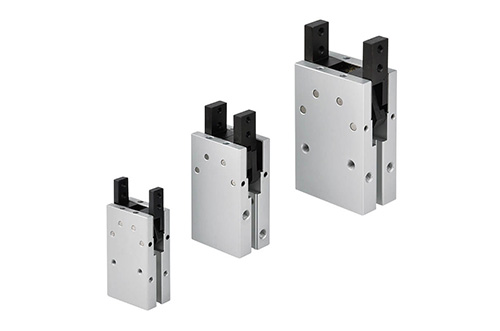

Parallel Gripper ( 2, 3 Finger ) - MCHB 2 Finger
Tube I.D. φ12, 16, 20, 25, 32 (mm), Two-jaw parallel gripper, Economical.
Features
Two-jaw parallel gripper.
Economical.
Magnetic as standard.
Specifications
Acting type | Double acting / Single acting |
---|---|
Tube I.D. (mm) | 12, 16, 20, 25, 32 |
Port size | M3×0.5, M5×0.8 |
Medium | Air |
Operating pressure range | Double acting : 0.15 ~ 0.7 MPa Single acting : 0.2 ~ 0.7 MPa |
Max.operating frequency | 180 Cycles/min |
Ambient temperature | -5℃ ~ +60℃ ( No freezing ) |
Lubrication | Cylinder: Not required, Lever: Grease (Actuation at) |
Max arm length (L) mm | 30, 40, 60, 70, 85 mm |
Theoretical holding force (M) kgf-cm | Closed side : 8 ~ 100, Opened side : 5 ~ 85 ( ※ ) |
Lever open / Close stroke | 6, 8, 12, 14, 16 mm |
Sensor switch | RDE, RDE-D : Non-contact |
Weight | Double acting : 66g, 144g, 255g, 419g, 719g Single acting : 66.5g, 145g, 257g, 422g, 722g |
Remark | ※ Gripping point length L = 30mm, Pressure = 0.5 MPa. |
