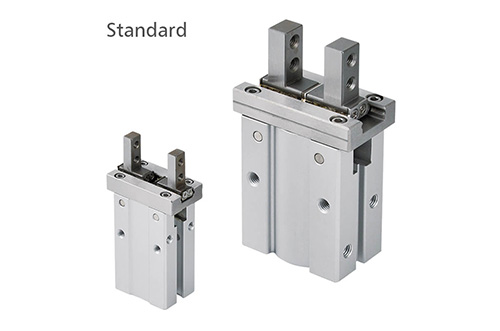

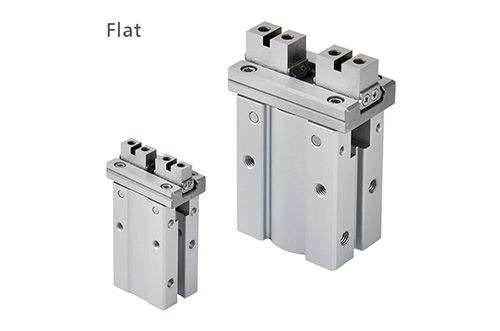

Parallel Gripper ( 2, 3 Finger ) - MCHC 2 Finger
Tube I.D. φ 6, 10, 16, 20, 25 (mm), Two-jaw parallel gripper, High accuracy ball bearing gripper set, Suitable for precise assembly, Stainless steel gripper set.
Features
Two-jaw parallel gripper.
Linear ball bearing gripper set with high accuracy, rigidity and lifetime.
Stainless steel gripper set.
Built-in locating hole at bottom for re-positioning.
Magnetic as standard.
Specifications
Acting type | Double acting / Single acting |
---|---|
Tube I.D. (mm) | 6, 10, 16, 20, 25 mm |
Opening / Closing stroke (mm) | 4, 4 ( 8 ), 6 ( 12 ), 10 ( 18 ), 14 ( 22 ) mm |
Port size | M3×0.5, M5×0.8 |
Medium | Air |
Operating pressure range | Double acting φ6 : 0.15 ~ 0.7 MPa, φ10 : 0.2 ~ 0.7 MPa, φ16 ~ 25 : 0.1 ~ 0.7 MPa Single acting φ10 : 0.35 ~ 0.7 MPa, φ16 ~ 25 : 0.25 ~ 0.7 MPa |
Ambient temperature | -10 ~ +60℃ ( No freezing ) |
Repeatability | ± 0.01 mm |
Max.operating frequency | 180 Cycles/min 120 Cycles/min ( Long stroke ) |
Lubrication | Not required |
Sensor switch | RDE, RDE-D |
Weight | Double acting 27, 55, 124, 250, 456 g ( φ6 ~ 25 ) 57, 124, 138, 287 g ( Long stroke φ10 ~ 25 ) 53, 124, 244, 450 g ( Flat Type φ10 ~25 ) Single acting 70, 145, 270, 490 g ( φ10 ~ 25 ) |
