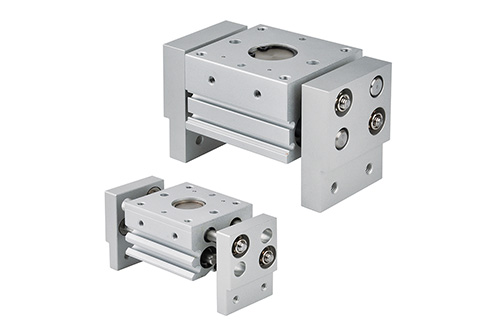

Parallel Gripper ( 2, 3 Finger ) - MCHX Wide Type 2 Finger
Tube I.D. φ10, 16, 20, 25, 32, 40 (mm), Two-jaw parallel gripper, Dual piston design for high gripping force, Very long stroke, Dust-proof design for longer lifetime.
Features
Two-jaw parallel gripper.
Dual piston design for high gripping force.
Very long stroke.
Dust-proof design for longer lifetime.
Magnetic as standard.
Specifications
Acting type | Double acting |
---|---|
Tube I.D. (mm) | 10, 16, 20, 25, 32, 40 |
Stroke | 20 ~ 200 mm |
Medium | Air |
Operating pressure range | 0.2 ~ 0.6 MPa |
Ambient temperature | -5℃ ~ +60℃ ( No freezing ) |
Repeatability | ±0.1 mm |
Lubrication | Not required ( ※ ) |
Remark | ※ Maintenance: Re-Lubrication after appr. 1.5 million cycles recommended. |
