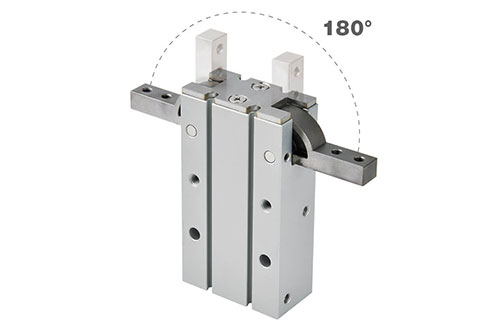

Angular Gripper - MCHY 180° Cam Style
Tube I.D. φ10, 16, 20, 25 (mm), Two-jaw angular gripper (0°~180°), Compact and lightweight design.
Features
Two-jaw angular gripper. (0°~180°)
Compact and lightweight design.
Multiple mounting direction.
Magnetic as standard.
Specifications
Acting type | Double Acting |
---|---|
Tube I.D. (mm) | 10, 16, 20, 25 |
Medium | Air |
Operating pressure range | 0.2~0.6 MPa |
Ambient temperature | -10~+60℃ (No freezing) |
Max.operating frequency | 60 (c.p.m) (*1) |
Lubrication | Not required (*2) |
Repeatability (±mm) | ±0.2 |
Effective force (N.m) at (0.5 MPa) | 0.016~0.228 N.m |
Operating angle (both sides) | Opened side:180°, Closed side:-3° |
Sensor switch | 2 wire: RDFE(V): Non-contact 3 wire: RNFE(V): NPN, RPFE(V): PNP |
Weight | 80g, 150g, 320g, 600g |
Remark | *1. Speed adjust components are required while in use. *2. Maintenance: Re-Lubrication after appr. 1.5 million cycles recommended. |
