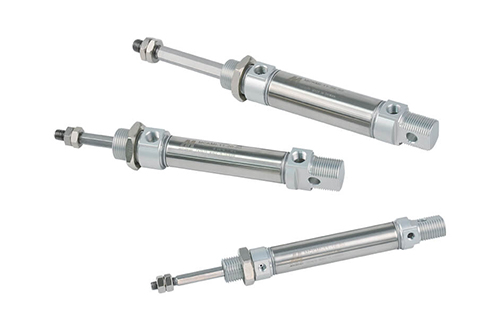

Mini Cylinder With Non-rotating Rod - MCKMI ISO 6432
ISO 6432 Mini. cylinder with non-rotating rod. Tube I.D. φ16, 20, 25 (mm). ISO 6432 Cylinder with hexagonal rod design enables non-rotation of rod. Designs of oil-filled alloy. Stainless cylinder tubes resist corrosion and abrasion.
Features
Non lubrication :
Special housing and bushing enables self lubrication of piston rod.
High quality long service life :
Cylinder with hexagonal rod design enables non-rotation of rod.
Hard anodised stainless steel cylinder tubes offer a high resistance to corrosion and low internal friction.
Cylinder mountings, available with a comprehensive range of accessories for rigid or flexible mounting.
Magnetic as standard; Port thread Rc or NPT are also available.
ISO 6432 standard :
Enables world-wide inter-changeability.
Magnetic as standard.
Specifications
Tube I.D. (mm) | 16, 20, 25 |
---|---|
Port size | M5×0.8, G1/8 |
Medium | Air |
Operating pressure | 0.06 ~ 0.7 MPa |
Proof pressure | 1 MPa |
Ambient temperature | -5~+60℃ ( No freezing ) |
Lubricator | Not required |
Available speed range | 50~750 mm/sec |
Max. allowable kinetic energy | Cushion pad 0.09, 0.27, 0.4J, Adjustable cushion ─, 0.66, 0.97J |
Rod non-rotating accuracy | ±1°, ±0.7° |
Allowable rotational torque | 0.4, 2.0, 2.5 kgf-cm |
Sensor switch | RCM |
Sensor switch band | BM16 / 20 / 25 |
Remark | ※ The cylinder is allowed little leakage. Before the cylinder is sale, it has passed the standard of leakage test. |
