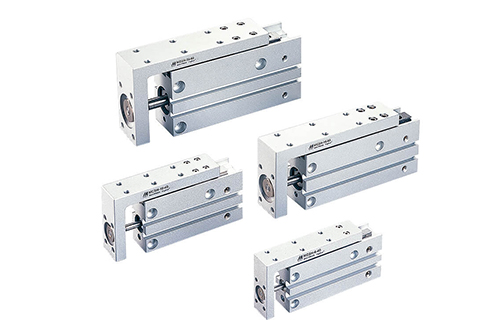

Compact Slide - MCSH
Tube I.D. φ6, 10, 16, 20 (mm). Compact precision cylinder. Cylinder can take high lateral loads and is also non rotating. Cylinder can be mounted in 3 or 4 positions. Magnetic as standard.
Features
Compact precision cylinder.
Cylinder can take high lateral loads and is also non rotating.
Cylinder can be mounted in 3 or 4 positions.
Magnetic as standard.
Specifications
Acting type | Double acting |
---|---|
Tube I.D. (mm) | 6,10,16,20 |
Port size | M5×0.8 |
Medium | Air |
Operating pressure range | φ6 : 0.12 ~ 0.7 MPa , φ10,16 : 0.06 ~ 0.7 MPa, φ20 : 0.05~0.7 MPa |
Proof pressure | 1.07 MPa |
Ambient temperature | -10~+60℃ ( No freezing ) |
Piston speed | 50 ~ 500 mm/sec |
Allowable kinetic energy | 0.125 ~ 1.0 kgf.cm |
Lubrication | Not required |
Cushion | Rubber bumper |
Stroke length tolerance | +1.0 0 |
Sensor switch | RCE, RCE1, RDEP |
