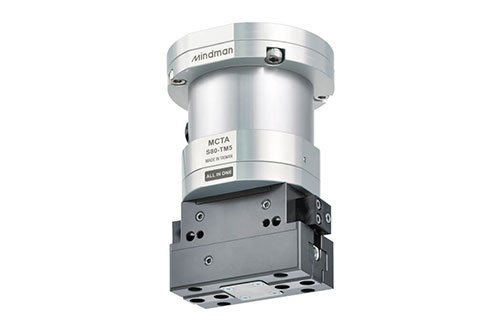

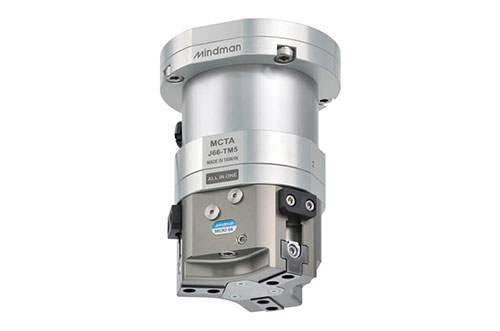

All-in-One Pneumatic Gripper - MCTA
Body specification : 66, 80 (mm), All-in-One module design with embedded solenoid valves and sensor switches, Only one I/O signal cable and one air tube is required. Plug and play, High reliability and simple operation compare with electirc grippers.
Features
All-in-One module design with embedded solenoid valves and sensor switches.
Only one I/O signal cable and one air tube is required. Plug and play.
High reliability and simple operation compare with electirc grippers.
Integrated wires with power-off protection.
Easy mounting design with threads and bolts.
Magnetic as standard.
Specifications
Acting type | Double acting |
---|---|
Body specification (mm) | 66, 80 |
Stroke per-jaw (mm) | 6, 8 |
Effective external gripping force(N) | 188, 285 (※1) |
Effective internal gripping force (N) | 194, 290 (※1) |
Close/Open time (s) | 0.03, 0.04 |
Medium | Air |
Operating pressure range | 0.2~0.8 MPa, 0.3~0.8 MPa |
Ambient temperature | +5~+80°C |
Lubrication | Not required |
Sensor switch | RDFE: Non-contact |
Accessories | Accessory kits |
Weight (kg) | ≈1.3 |
Recom. work piece weight (kg) | 3.8, 2.6 (※2) |
Remark | ※1. Under the condition of clamping length 40mm and operation pressure 0.6 MPa. ※2. The weight limit of gripping workpiece depends on the load limit of robot arm and usage parameters. |
