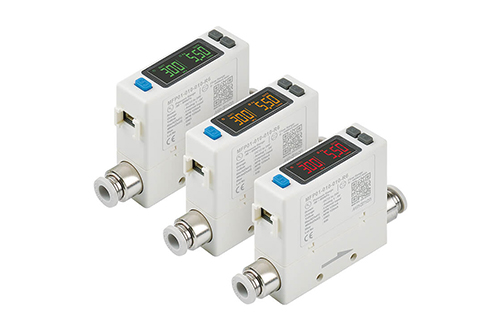

Flow Sensor - MFP01 Digital Flow & Pressure Sensor
IP40, 3-color digital LCD display. Cost control, User-friendly, High performance. 2-in-1 design: Pressure and flow rate simultaneous monitoring. Accumulated flow rate display at a glance. Multiple output function: Digital display, switch output, analog output, accumulated pulse output.
Features
Cost control, User-friendly, High performance.
Dry air, N2.
RS-485 MODBUS control.
2-in-1 design: Pressure and flow rate simultaneous monitoring.
Accumulated flow rate display at a glance.
Multiple output function: Digital display, switch output, analog output, accumulated pulse output.
Wide range of flow rates.
Specifications
Fluid | Dry air, N2, Non-corrosive / Non-flammable gas |
---|---|
Flow Pressure (Sensor element) |
Measured flow rate range : 005 : 0 ~ 500 mL/min, 010 : 0 ~ 1000 mL/min, 050 : 0 ~ 5 L/min, 100 : 0 ~ 10 L/min, 500 : 0 ~ 50 L/min, 101 : 0 ~ 100 L/min, 201 : 0 ~ 200 L/min Flow direction : Unidirection Rated pressure range : -90 ~ 800 kPa |
Pressure Display | Display range : -100 ~ 1000 kPa |
Flow Pressure (Accuracy) |
Guaranteed range : 2 ~ 100 % F.S. Guaranteed range : 0 ~ 100 % F.S. |
Response time (Switch output) |
Flow : 800 ms ( 50 ms, 80 ms, 120 ms, 200 ms, 400 ms, 1500 ms selectable) Pressure : 2.5 ms ( 25 ms, 100 ms, 250 ms, 500 ms, 1000 ms, 1500 ms selectable) |
External input | Non-voltage input, < 0.4 V, ≥ 30 ms |
Communication interface | RS-485 |
Power | Power supply voltage : 12 ~ 24 V DC ± 10 %, Ripple ( P-P ) ≤ 10 % Current consumption : ≤ 50 mA |
Lead wire | ø4 Oil-resistance cable ( PVC ) - 26 AWG ( 0.15 mm2 ) - 6 cores |
Weight (with 2 meter lead wire) | Approx. 107 g ( ø6 port ) ; Approx. 110.5 g ( ø8 port ) |
