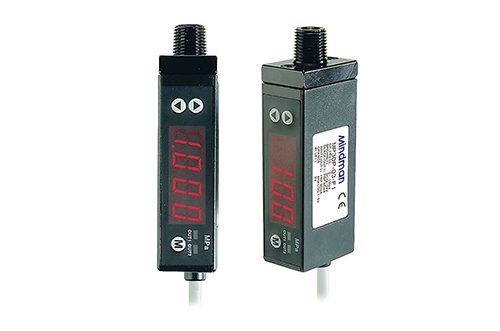

Pneumatic Pneumatic Pressure Switch - MP30
Pressure range : Compound -100.0~100 kPa ; Positive 0~1MPa; Vacuum 0~-101.3kPa. Two switch output & one analog output. Hysteresis
Specifications
Port size | F1 : Rc1/8, M5 ; F2 : NPT1/8, M5; F3 : G1/8, M5 |
---|---|
Rated pressure range | Compound : -100.0~100.0 kPa Vacuum : 0.0 ~ -101.3 kPa Positive : 0.00 ~ 1.00 Mpa |
Operating / Setting pressure range | Compound : - 100.0~100.0 kPa Vacuum : 10.0 ~ - 101.3 kPa Positive : - 0.100 ~ 1.000 Mpa |
Proof pressure | 300 kPa ( Compound, vacuum ) 1.5 MPa ( Positive ) |
Power supply voltage | 12 to 24VDC ±10%, Ripple ( P-P ) 10% or less |
Response time | ≦2.5ms ( chattering-proof function : 24ms, 192ms and 768ms selections ) |
Switch output | NPN or PNP open collector 2 outputs Max. load current : 100mA Max. supply voltage : 30VDC Residual voltage : ≦1V ( load current 80mA ) |
Repeatability ( Switch output ) | ≦± 0.2% F.S. ± 1 digit |
Current consumption | ≦55mA |
Output short circuit protection | Yes |
7 segment LCD display | 3 1/2 digit LED display ( Sampling rate : 5 times/1sec. ) |
Indicator | Green LED ( OUT1 ) Red LED ( OUT2 ) |
Ambient temp. range | Operation : 0 ~ 50℃, storage : -20 ~ 60℃ ( No condensation or freezing ) |
Ambient humidity range | Operation/Storage : 35 ~ 85% RH ( No condensation ) |
Withstand voltage | 1000VAC in 1-min ( between case and lead wire ) |
Insulation resistance | 50MΩ min. ( at 500VDC, between case and lead wire ) |
Vibration | Total amplitude 1.5mm, 10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z |
Shock | 980m/s2 ( 100G ) , 3 times each in direction of X, Y and Z |
Temperature characteristic | ≦2% F.S. of detected pressure ( 25℃ ) at temp. Range of 0~50℃ |
Lead wire | Oil-resistance cable ( 0.15mm2 ) |
Weight | Appro 65g ( with 2-meter lead wire ) , Appro 35g ( with meter connector ) |
