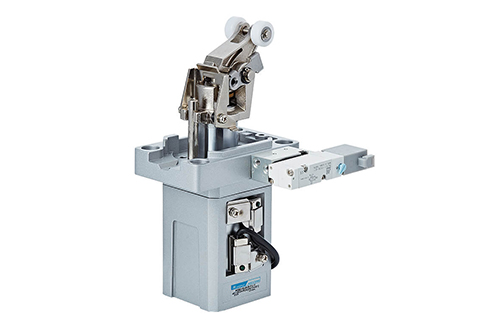

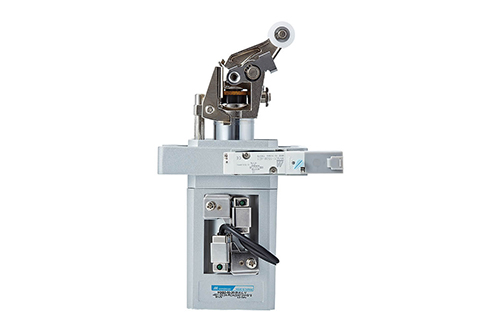

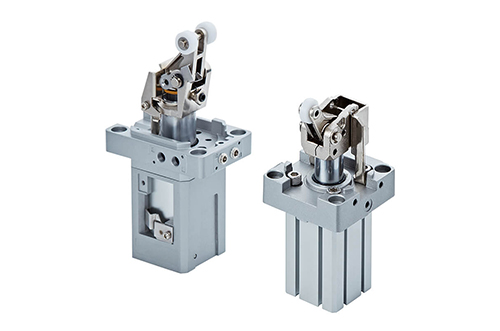

Stopper Cylinders - MSBD
Tube I.D. φ 32, 50, 63, 80 (mm). Vertical mounting type. Optional lever-lock and free-pass accessories. Optional proximity sensor. Built-in roller and shock absorber. High damping performance.
Specifications
Operation type | Double acting with spring (φ32-20), Shockless stopper (φ50-30,φ63-30,φ80-40) |
---|---|
Standard stroke | φ32-20, φ50-30, φ63-30, φ80-40 |
Medium | Air |
Operating pressure range | 0.2 ~ 1 MPa |
Proof pressure | 1.5 MPa |
Ambient temperature | -5℃ ~ +60℃ ( No freezing ) |
Lubrication | Not required |
Cushion | With rubber cushion pad |
Magnet | Standard with magnet |
Sensor switch | RCA for φ50, RCB, RCE, RCE1 ,RDEP |
Sensor switch holder | HS |
Weight | 740g, 1800g, 3680g, 6820g |
