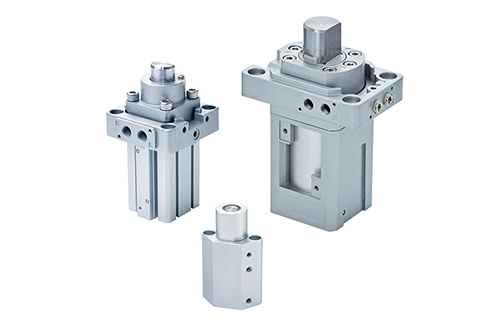

![Stopper Cylinders - MSBS](images/14-mindman-pisco/3-air-cylinders/11-stopper-cylinders/1-MSB/MSBS.jpg)
![Stopper Cylinders - MSBS](images/14-mindman-pisco/3-air-cylinders/11-stopper-cylinders/1-MSB/MSBS.jpg)
Specifications
Operation type | Double acting, Direct stopper |
---|---|
Standard stroke | φ20-10, φ32-20 φ50-30 |
Medium | Air |
Operating pressure range | 0.2 ~ 1 MPa |
Proof pressure | 1.5 MPa |
Ambient temperature | -5℃ ~ +60℃ ( No freezing ) |
Lubrication | Not required |
Cushion | With rubber cushion pad |
Magnet | With magnet |
Sensor switch | RCA for φ50, RCB, RCE, RCE1, RDEP |
Sensor switch holder | HS |
Weight | 192g, 720g, 1850g |
