Features

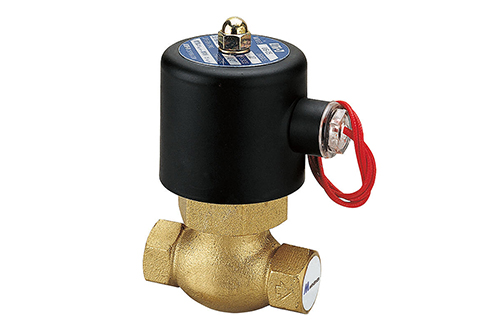

MUS / MUS-F series is multiplex-drive, piston guide, connected normal close.
Acceptable for customization Viton (130°C) , Silicone (130°C) and EPDM (130°C) for seal plug.
Flange: JIS 10K (Option: ANSI 150LB or PN-16).
AC voltage tolerance: ±10%. DC voltage tolerance: ±1%
Min pressure to open 0.05 MPa (over 1 1/4" is 0.1 MPa).
Before pipelining, the pipe line must be very clean without any contaminants or impurity.
To extend the lifetime, Y-line filter should be installed in the front end of solenoid valve.
It should be installed horizontally; vertical installation is not advisable.

Specifications
