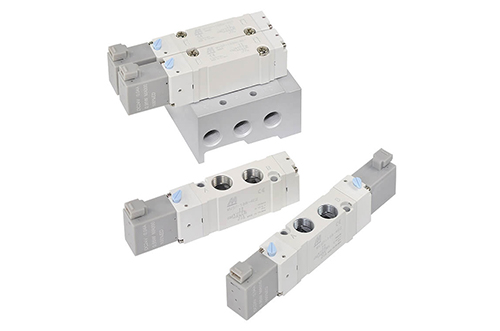

Solenoid Valve - MVSP Series - MVSP-188
Body width: 18 mm, Port size: Rc1/4, Operating pressure range: 0.15~0.8 MPa, Proof pressure: 1 MPa, Flow: 599~1470 l/min.
Features
• DISK seal and U-packing ( HNBR )：
High wear resistance, wide working temperature, excellent sealability, lifetime 50 million cycles.
• Low power output PLC：
Can drive solenoid valve directly.
• Bridge rectifier design
Converting AC voltage to DC, it can eliminate operating noise.
• Low power consumption
DC power 0.95W, It can save over 70% power consumption compared with other brand ( 3W ).
• Low current consumption
It can extend lifetime of driver ( PLC、Relay … ).
Specifications
| Body width | 18 mm |
|---|---|
| Bore No. | 8A |
| No. of port | 5 |
| No. of position | 2, 3 |
| Port size | Rc1/4 |
| Medium | Air |
| Operating pressure range | 0.15 ~ 0.7 MPa, 0.2 ~ 0.7 MPa ( 5/3 ) |
| Proof pressure | 1 MPa |
| Flow | 599 ~ 1470 l/min |
| Effective orifice | 15 mm2, 16.3/27/12.4 mm2 ( 5/3 ) |
| Response time | DC < 23 ms, AC < 35 ms , DC < 33 ms, AC < 45 ms ( 5/3 ) |
| Ambient temperature | －5 ~ ＋50℃ ( No freezing ) |
| Voltage | AC110V, AC220V ( 50/60 ) Hz, DC12/24V |
| Power consumption | AC = 2.5VA , DC = 0.95W |
| Available voltage range | ±10% |
| Insulation class | F class |
| Weight | 96 g, 132 g, 142 g |
