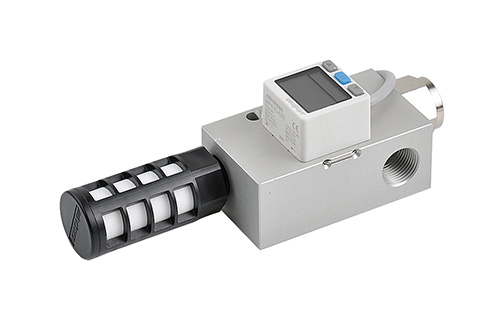

Vacuum Generator - MVVA
Nozzle dia.:1.0, 1.5, 2.0, 2.5, 3.0 mm ; Operating pressure range: 0.1~0.6 MPa; Final vacuum: －91.8 kPa (－690mmHg).
Specifications
| Nozzle dia. | 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm |
|---|---|
| Port size | G1/8, G1/4, G3/8, G1/2 |
| Medium | Air |
| Operating pressure range | 0.1 ~ 0.6 MPa |
| Ambient temperature | 0 ~ ＋60℃ ( No freezing ) |
| Final vacuum | －91.8 kPa ( －690 mmHg ) |
| Suction flow | 32 l/min, 63 l/min, 130 l/min, 160 l/min, 225 l/min |
| Lubrication | Not required |
| Air consumption | 76 l/min, 100 l/min, 185 l/min, 265 l/min, 385 l/min |
| Supply pressure | 0.5 MPa |
| Signal setting range | SJ type : －20.0 ~ －53 kpa ( －150 ~ －400 mm Hg ) EV type : －100 ~ 100 kpa ( －757.5 ~ －757.5 mm Hg ) |
| Weight | Standard Type : 84g, 126g, 294g, 672g, 787g ; SJ type : 110g, 158g, 321g EV type : 162g, 197g, 353g |
