Sensor Switch

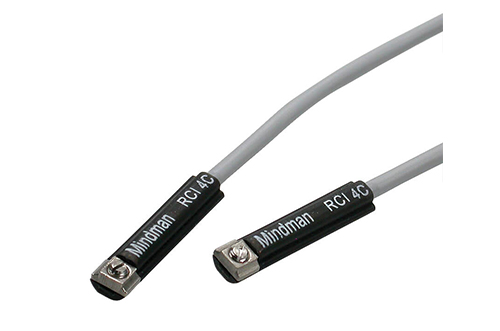

Sensor Switch - RCI

Assembling style: MCQI2, MCBQI2, MCJI, MCGI, MGTX, METB, MGTU, Model, RCI-Voltage range:5~240V DC/AC, RCI-N/RCI-P/RNI/RPI-Voltage range:10~30V DC.

Wiring method	RCI : 2 wire ; RCI-N, RCI-P, RNI, RPI : 3 wire
Switching logic	RCI, RCI-N, RCI-P : Reed switch, RNI : NPN current sinking, RPI : PNP current sourcing
Switch type	Normal open
Operating voltage	RCI : 5~240V DC/AC, RCI-N, RCI-P, RNI, RPI : 10~30V DC
Switching current	RCI : 100mA max. RCI-N, RCI-P : 500mA max. RNI, RPI : 200mA Max.
Switching rating	RCI, RCI-N, RCI-P : 10W max. RNI, RPI : 6W max. (※1)
Current consumption	RCI-N, RCI-P : 5 mA@24V DC max. RNI, RPI : 20 mA@24V DC max.
Voltage drop	RCI : 3.0V max. RCI-N, RCI-P : 0.1V@100mA max. RNI, RPI : 1.5V max.
Leakage current	RNI, RPI : 0.05mA max.
Indicat	RCI, RNI : Red LED, RCI-N, RCI-P, RPI : Yellow LED
Cable	RCI : φ3,2C,PU, RCI-N, RCI-P : φ3,3C,PUR RNI, RPI : φ3,3C,PUR
Temperature range	－10℃~＋70℃ ( No freezing )
Shock	RCI, RCI-N, RCI-P : 30G, RNI, RPI : 50G (※2)
Vibration	9G (※3)
Enclosure classification	IEC 60529 IP67
Protection circuit	RCI : 1, RNI,RPI : 2,3,4 (※4)
Weight	23g ( 2m Cable )
Remark	※1 : Warning: Never exceed rating ( watt = voltage × amperage ). Permanent damage to sensor will occur. ※2 : Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time. ※3 : Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time. ※4 : 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression.
