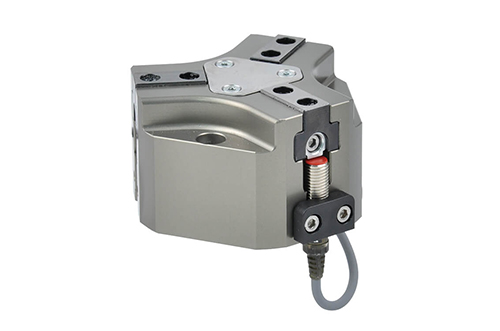

Sensor Switch - RJY Proximity Sensor
Operating voltage: 10~30V DC, Current consumption: 10mA max, Output current: 150mA max, Assembling style: MCTC, MCHJ, MCHS
Specifications
| Body thread | M5, M8 |
|---|---|
| Operating voltage | 10~30V DC |
| Power ripple | 20% peak to peak |
| Current consumption | 10mA max. |
| Detection distance | M5: 1.0±0.2 (steel) M8: 1.8~2.0 (steel), 0.4~0.6 (aluminum) |
| Hysteresis | 10% of sensing distance max. |
| Response frequency | 2.5KHz min. |
| Output type | NPN, PNP |
| Output logic | N.O. |
| Output current | 100mA, 150mA max. |
| Residual voltage | 0.1V max. |
| Leakage current | 0.8mA max. |
| Protection type | Short circuit & polarity reversed protection |
| Indicator (LED) | Green, White |
| Cable | 3c/ø3, gray cover, oil and shaking resistance |
| Maximum voltage resistance | 2.5kv / 1 minute min. |
| Operating environment | -20°C ~ +80°C, 35% ~ 85% RH |
| Protection class | IP 67 |
