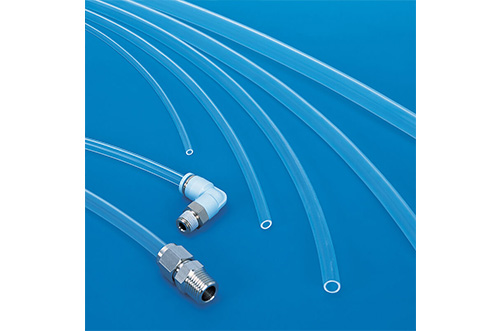

PISCO Tube For Special Environments - SFT / SET Fluororesin Tube
Fluid medium: Air, water (condition), chemicals, etc(condition)
Max. operating pressure: SFT:2.4 MPa, SET: 2.7 MPa
Specifications
| Fluid medium | Air, water (condition), chemicals, etc(condition) |
|---|---|
| Max. operating pressure ( 65%RH at 20℃ ) |
SFT：2.4 MPa ( 0420 )、1.4 MPa ( 0425, 0640 )、1 MPa ( 0860, 1075, 1290, 1/4, 3/8, 1/2 )、0.8 MPa ( 1080, 1210, 1613 ) SET：2.7 MPa ( 0420 )、1.6 MPa ( 0425, 0640 )、1 MPa ( 0860, 1075, 1290, 1/4, 3/8, 1/2 )、0.7 MPa ( 1080, 1210, 1613 ) |
| Max. vacuum | -100 kpa |
| Operating temp. range | SFT：-65 ~ 260℃ ( No freezing ) SET：-65 ~ 200℃ ( No freezing ) |
| Tube color | SFT：Transparent ( color sample ) SET：2 color ( color sample ) |
