2 Way, 2 Position Solenoid Valves

Fonray provides a number of solenoid valves including 2 way solenoid valves and 2 position solenoid valves. We divided our valves into two types, piston direct drive type and membrane type. The valves sizes are from 1/8 inch to 4 inch, and they could sustain the operating pressure from 5 kg to 50 kg. Moreover, we also provide high pressure and high temperature solenoid valve.

2 Way, 2 Position Solenoid Valves - 5404 High Pressure, High Temperature Solenoid Valve2 Way, 2 Position Solenoid Valves - 5404 High Pressure, High Temperature Solenoid Valve

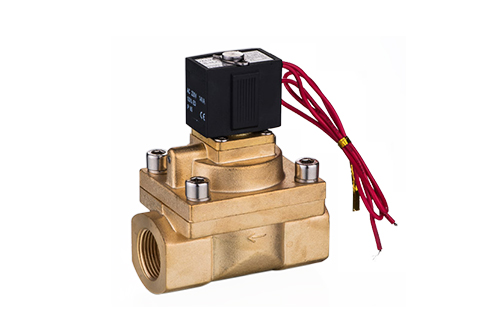

2 Way, 2 Position Solenoid Valves - 5404 High Pressure, High Temperature Solenoid Valve

* Please note that the full series of 2 way solenoid valves / pneumatic valves can only be installed in parallel ( the coil / cylinder face up ), not vertically.

Specifications

Model Working
Medium
Aperture of
Flow Rate
(mm)
Port Size
(G/PT)
Working -
pressure Range
(MPa)
Operating
Temperature
FSG5404-04 Air, Water, Oil, Gas 12 1/2″ Gas : 0.1~5
Liquid : 0.1~5
-5~+150 ℃
FSG5404-06 20 3/4″ Gas : 0.1~4
Liquid : 0.1~2.5
FSG5404-08 25 1″
