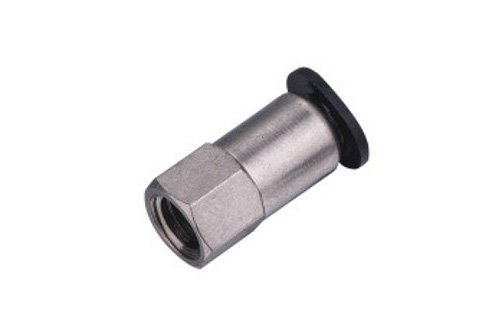

Mini Pneumatic Fittings - MPCF Female Straight
Specifications
| Model | Fluid Applied | Working - pressure Range |
Operating Temperature |
Max. Pressure |
Adapted Tube |
Material of Seal Ring |
|---|---|---|---|---|---|---|
| MPCF3-M3 | Air, vacuum, water, oil (use in no erodent environment) |
0~11kgf/cm² (0~1.1mpa) |
-10~60°C | 1.1mpa | PU tube Nylon tube |
VITON |
| MPCF3-M5 | ||||||
| MPCF3-M6 | ||||||
| MPCF4-M3 | Air, vacuum, water, oil (use in no erodent environment) |
0~11kgf/cm² (0~1.1mpa) |
-10~60°C | 1.1mpa | PU tube Nylon tube |
VITON |
| MPCF4-M5 | ||||||
| MPCF4-M6 | ||||||
| MPCF4-01 | ||||||
| MPCF6-M5 | Air, vacuum, water, oil (use in no erodent environment) |
0~11kgf/cm² (0~1.1mpa) |
-10~60°C | 1.1mpa | PU tube Nylon tube |
VITON |
| MPCF6-M6 | ||||||
| MPCF6-01 |
