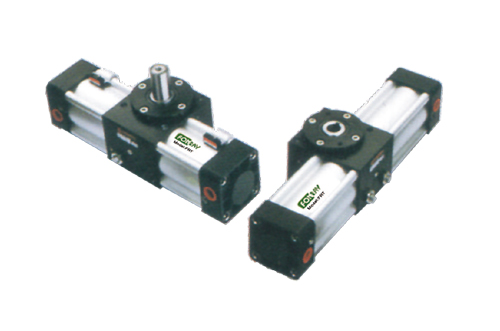

Standard Cylinders - FRT Series Rotary Actuators
Specifications
| Model | FRTF,FRTH,FRTH-D | |
|---|---|---|
| Bore(mm) | 40,63,80 | |
| Standard rotation (mm) | 90±5°,180±5° | |
| Rotating shaft dia (mm) | 16~28 | |
| Initial position of slot (mm) | see dimensional feature | |
| Fluid Applied | Filtered air with or without lubrication | |
| Working - pressure Range | 1.3~7 kgf/cm² | |
| Ambient temperature | - 5 ℃ ~ + 60 ℃ | |
| Max. allowable axial thrust (kg) | 10,12,20 | |
